1. Product Description

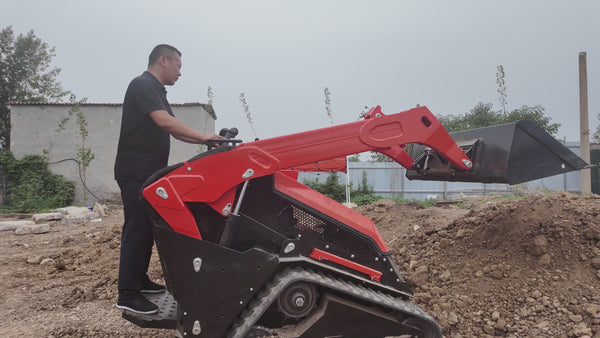

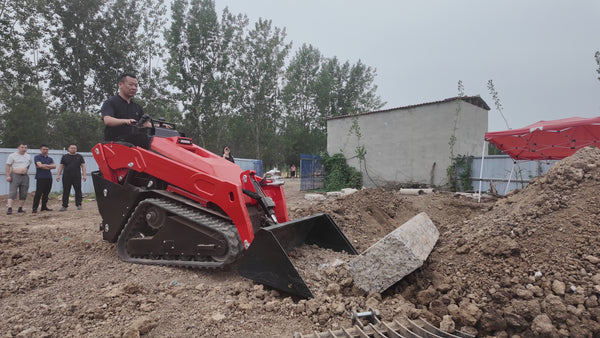

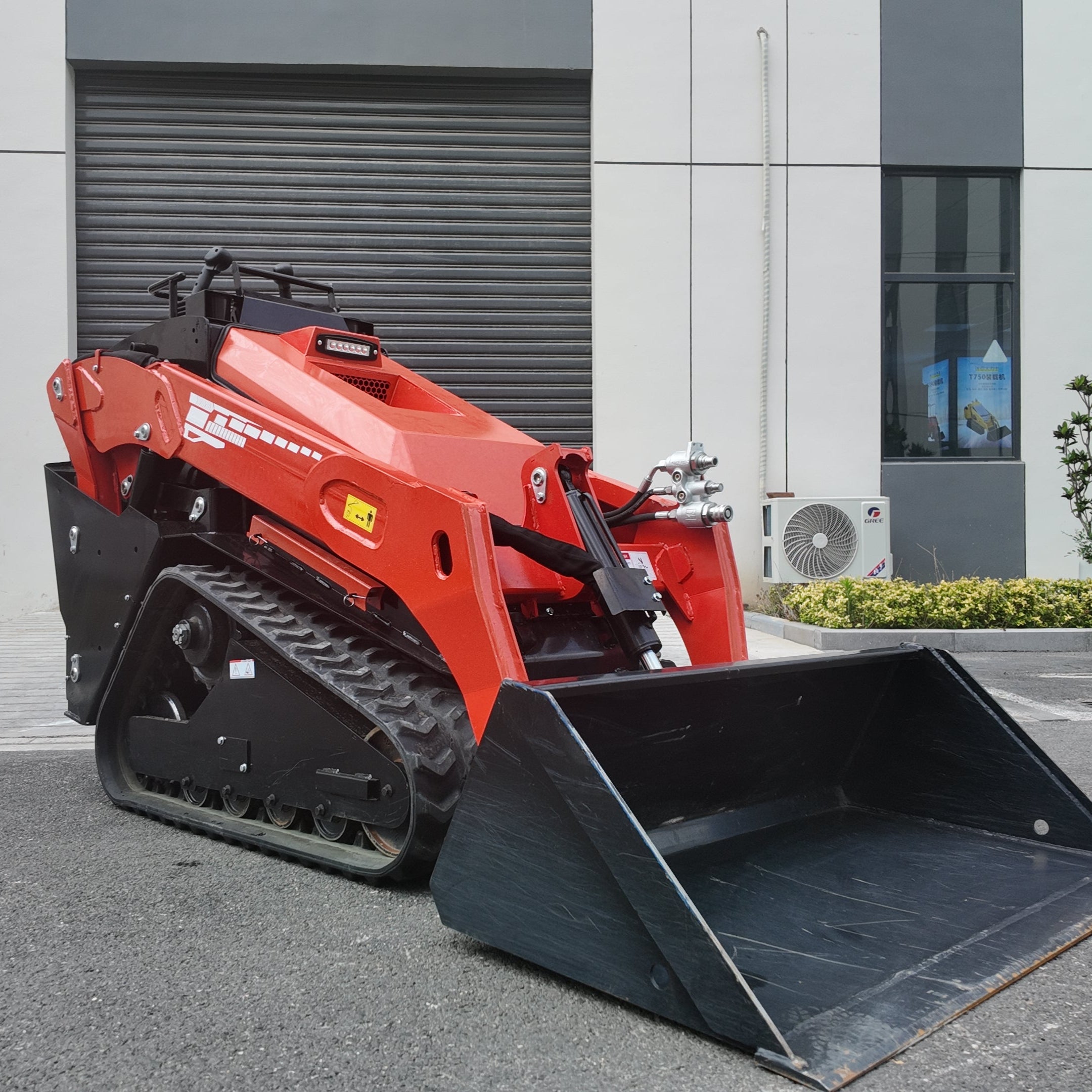

The V1000 skid steer loader is powered by a Japanese Kubota D1105 diesel engine (14kW), featuring hydraulic pilot operation and vertical lift design. With its compact size and robust build, it delivers excellent performance in confined spaces and uneven terrains. Ideal for municipal works, industrial applications, dock handling, residential construction, farms, barns, and airport runways. It can also serve as auxiliary equipment for large-scale construction machinery.
2. Configurations
Standard Configuration
-
Kubota D1105 diesel engine, 14kW
-
Hydraulic pilot control system
-
Vertical lifting mechanism
-
Rubber tracks (2307245)
-
Vehicle exit safety lock
Optional Configuration
-
Alternative engine brands (Yanmar, etc.)
-

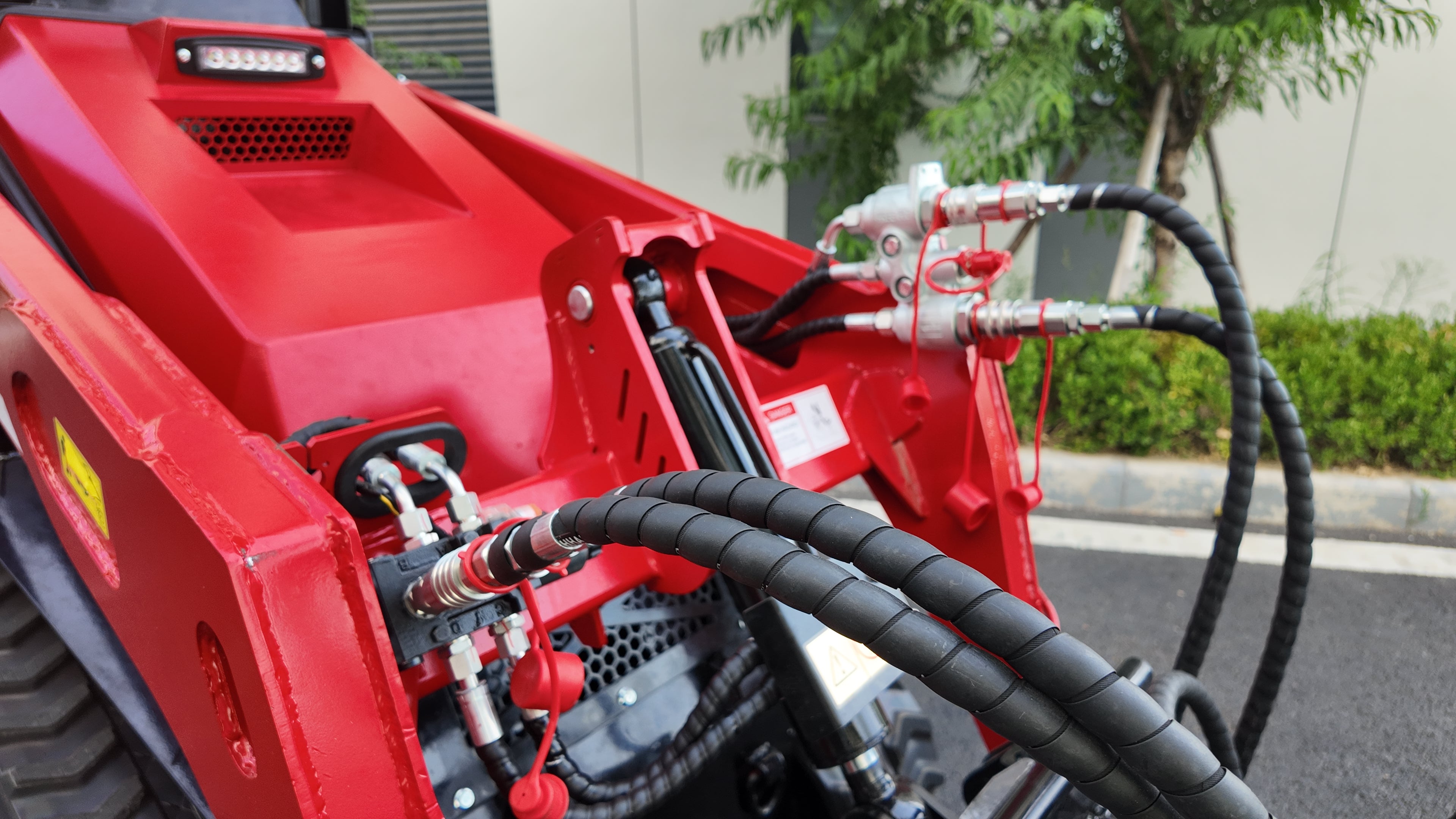

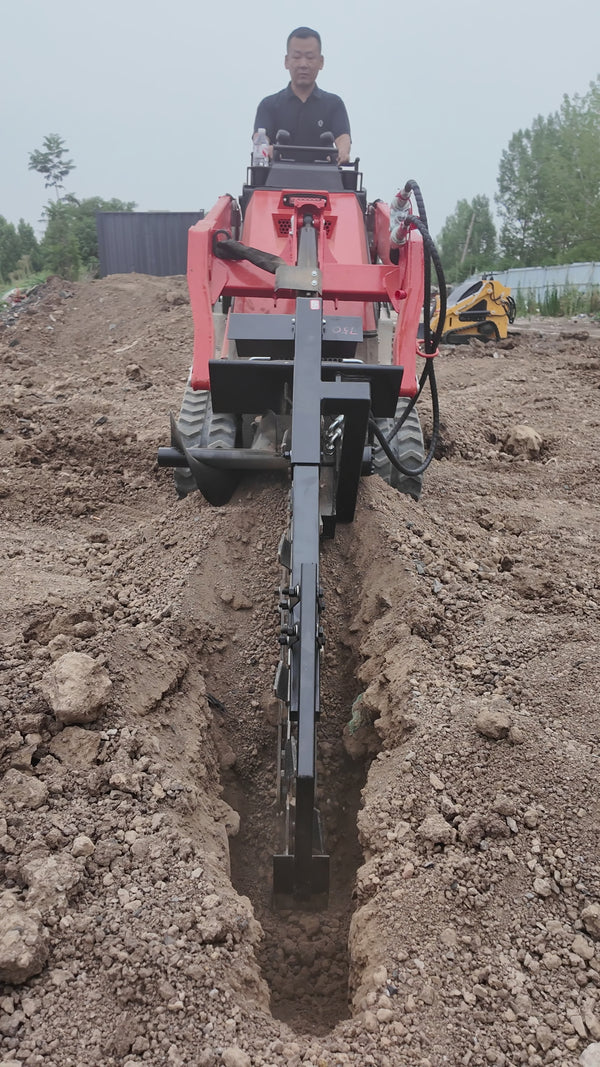

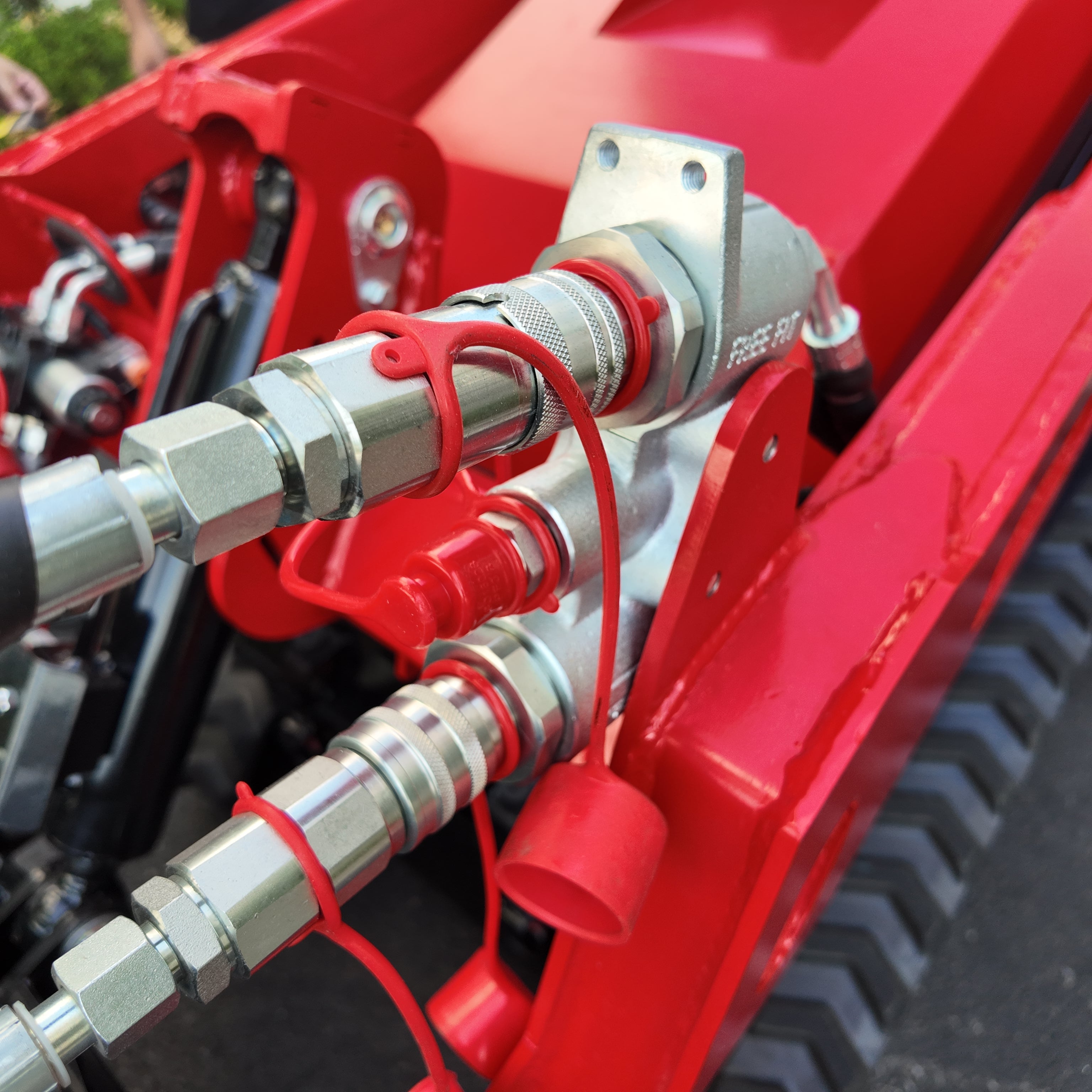

Multiple hydraulic attachments: bucket, breaker, log grapple, auger, etc.
-
Protective canopy or enclosed cabin
3. Product Details
3.1 Product Overview

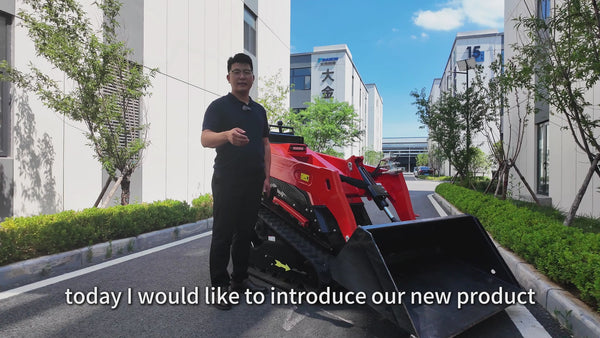

The V1000 compact skid steer loader combines power, maneuverability, and safety. Designed for small job sites and frequent task changes, it is suitable for municipal engineering, docks, farms, industrial sites, and construction projects. It can also act as a reliable auxiliary machine for larger equipment.
3.2 Key Features
-
Compact and flexible, ideal for narrow spaces and rough terrain
-

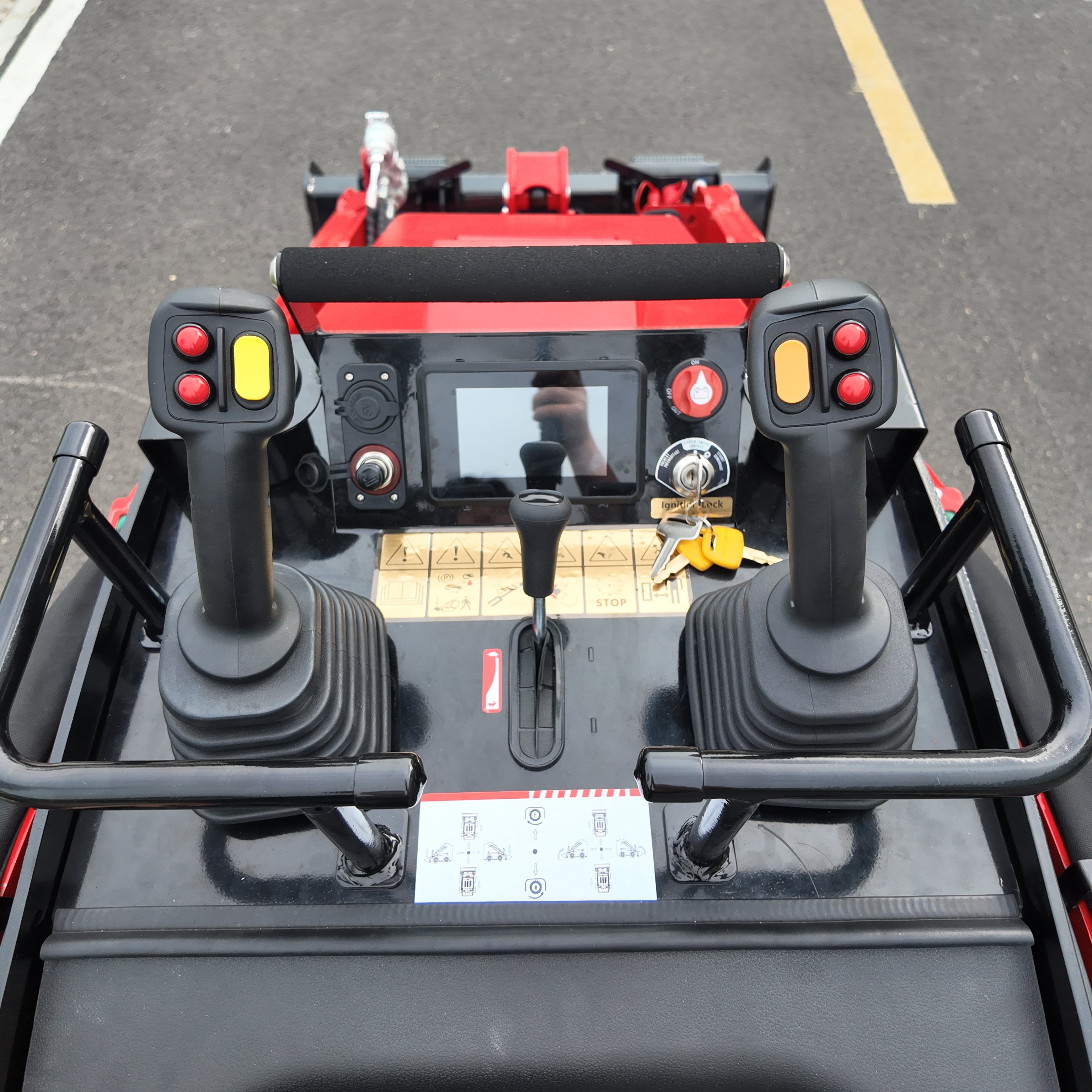

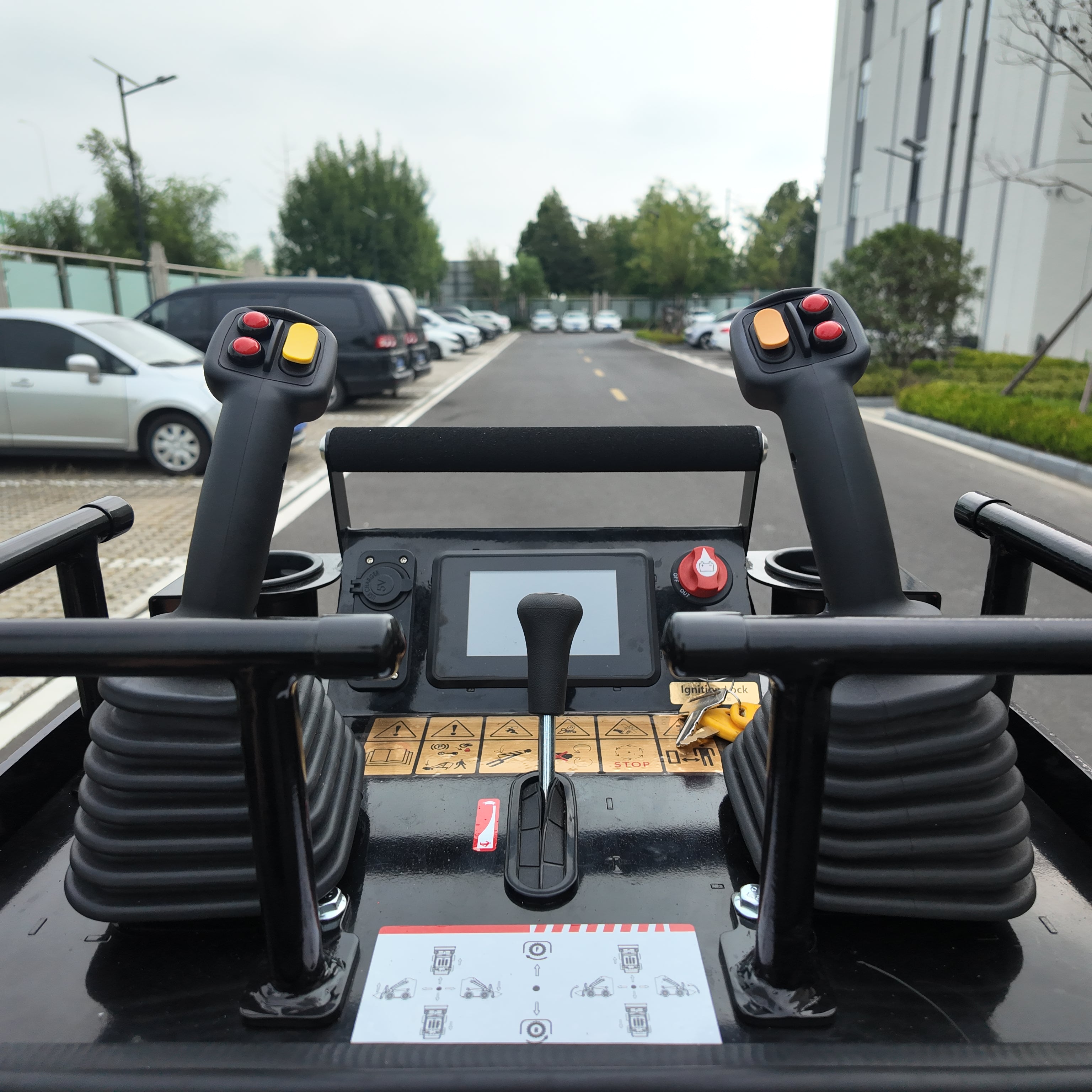

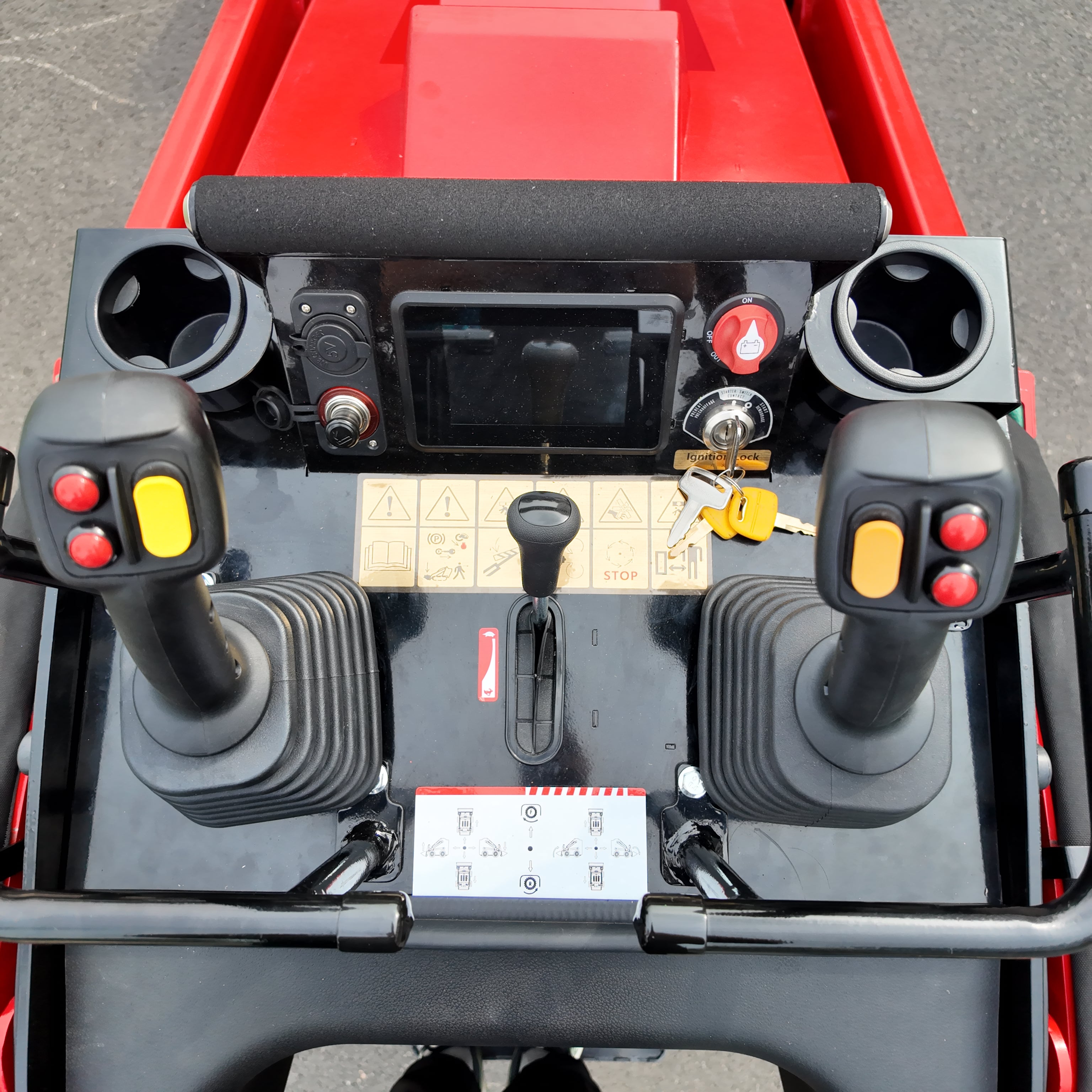

Hydraulic pilot control for precise and easy operation
-

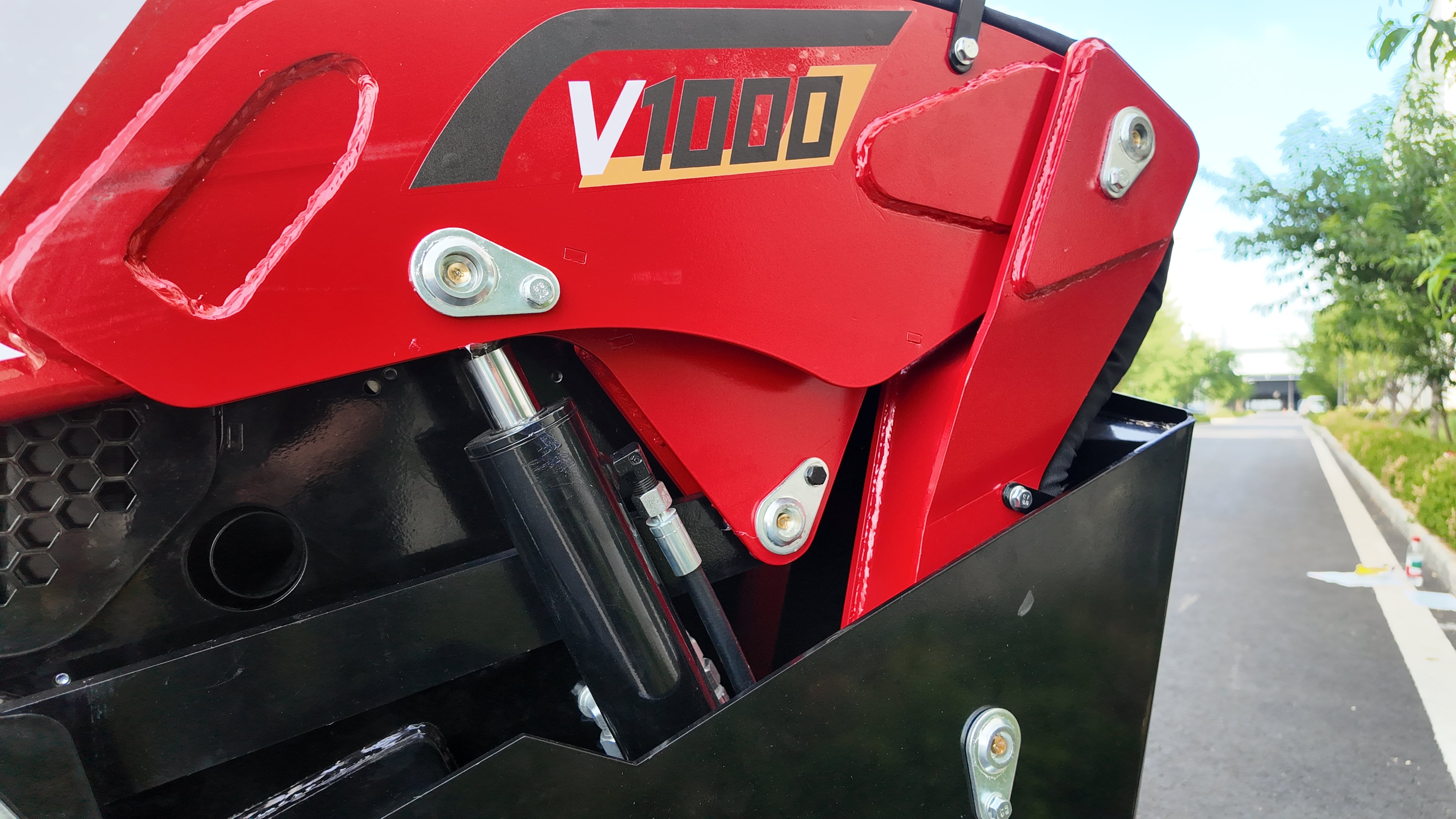

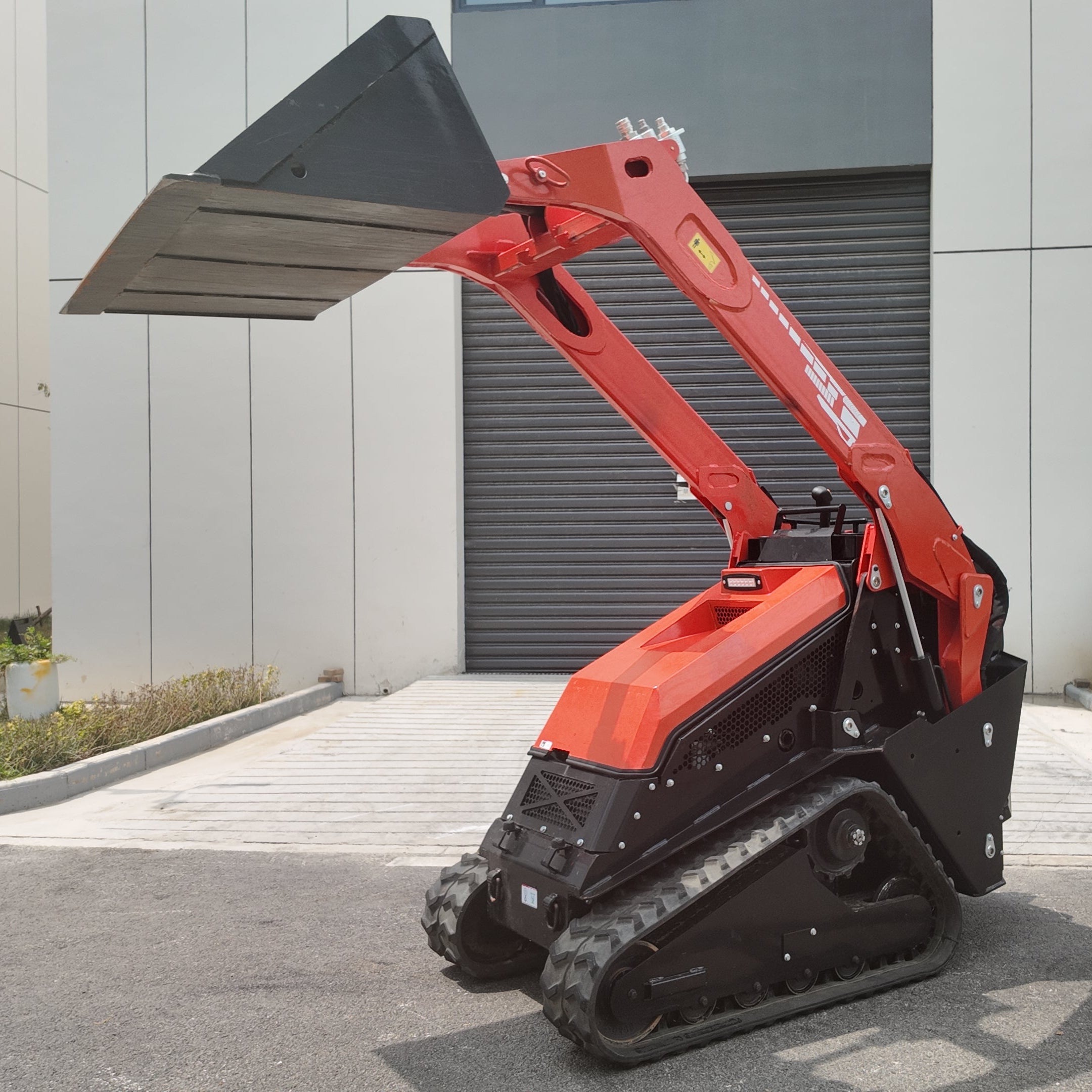

Vertical lift design enhances loading efficiency
-

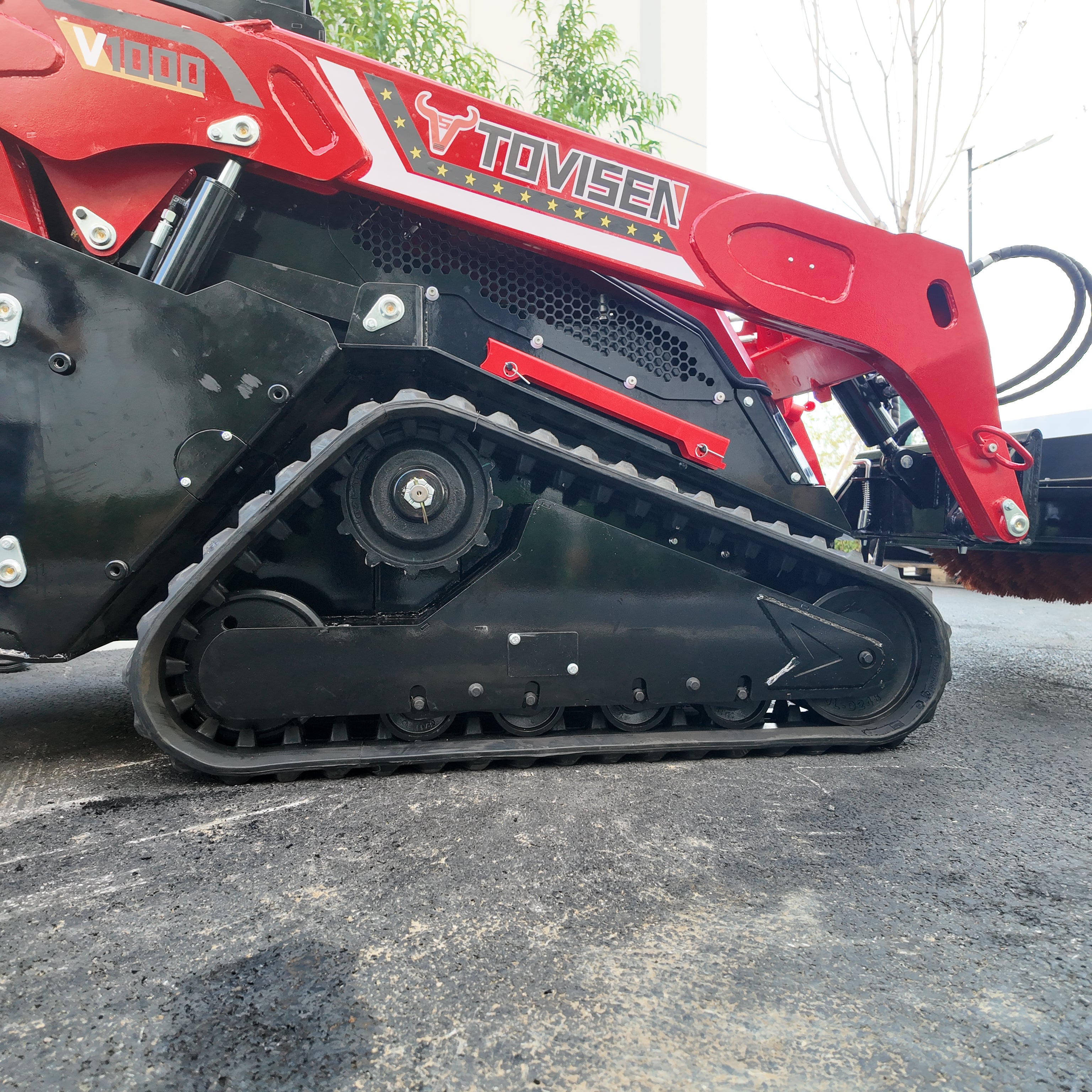

High-stability rubber tracks for durability and adaptability
-
Heavy-duty steel frame with powder coating, rust- and corrosion-resistant
-
360° body rotation for versatile job handling
-
Vehicle exit safety lock ensures operator security
3.3 Configurations
Standard: Kubota diesel engine 14kW, hydraulic pilot control, vertical lift, rubber tracks, safety lock
Optional: Alternative engine brands, multiple hydraulic attachments, protective cabin

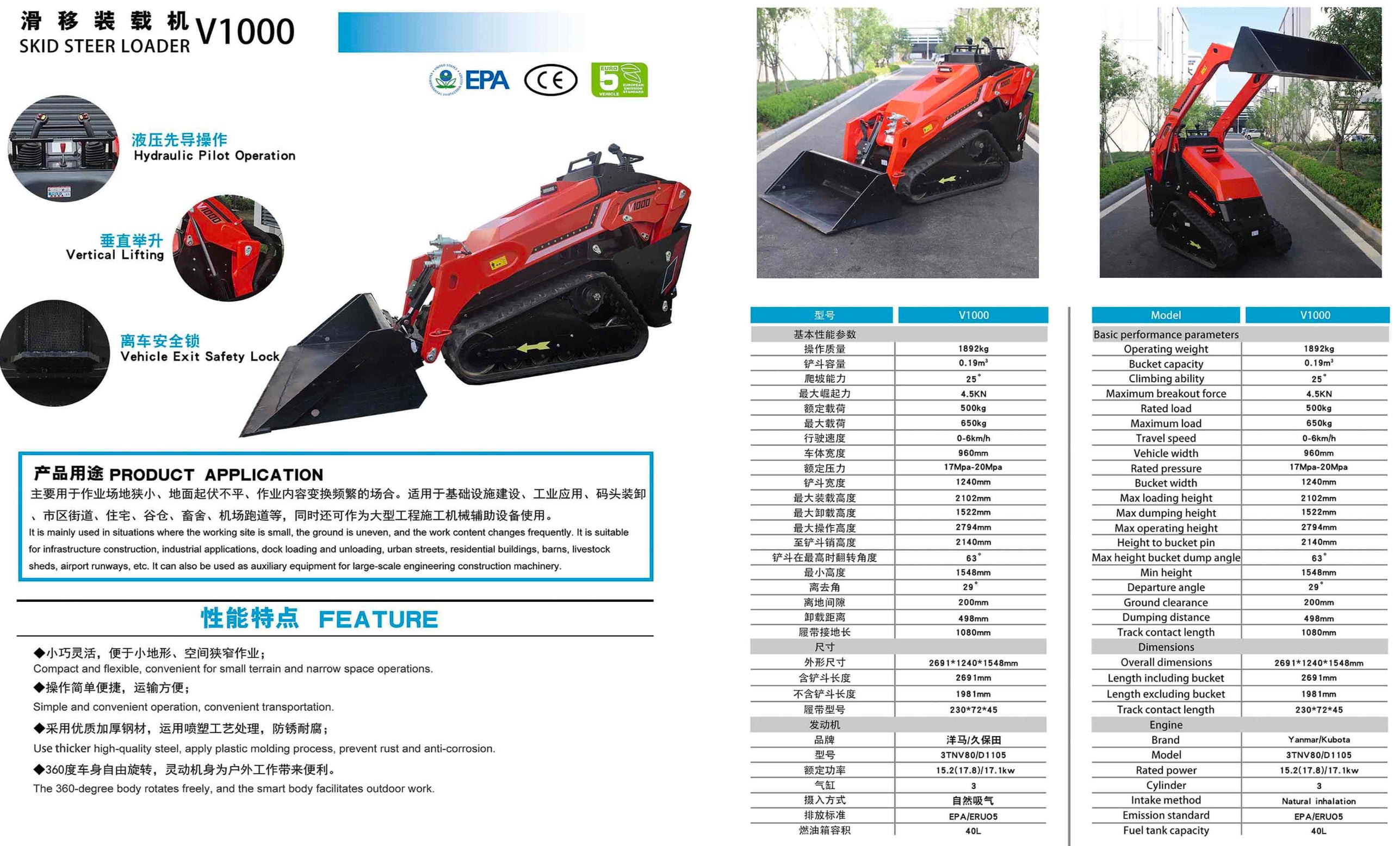

3.4 Specifications
| Item | Value |
|---|---|
| Model | V1000 |
| Operating weight | 1892kg |
| Bucket capacity | 0.19 m³ |
| Climbing ability | 25° |
| Max breakout force | 4.5KN |
| Rated load | 500kg |
| Max load | 650kg |
| Travel speed | 0–6 km/h |
| Vehicle width | 960mm |
| Rated pressure | 17–20Mpa |
| Bucket width | 1240mm |
| Max loading height | 2102mm |
| Max dumping height | 1522mm |
| Max operating height | 2794mm |
| Height to bucket pin | 2140mm |
| Max dump angle | 63° |
| Minimum height | 1548mm |
| Departure angle | 29° |
| Ground clearance | 200mm |
| Dumping distance | 498mm |
| Track contact length | 1080mm |
| Dimensions | 2691×1240×1548mm |
| Length incl. bucket | 2691mm |
| Length excl. bucket | 1981mm |
| Track model | 2307245 |
| Engine brand | Kubota / Yanmar |
| Engine model | 3TNV80 / D1105 |
| Rated power | 14kW (15.2–17.8kW optional) |
| Cylinder | 3 |
| Intake method | Natural aspiration |
| Emission standard | EPA / EU Stage V |
| Fuel tank capacity | 40L |
