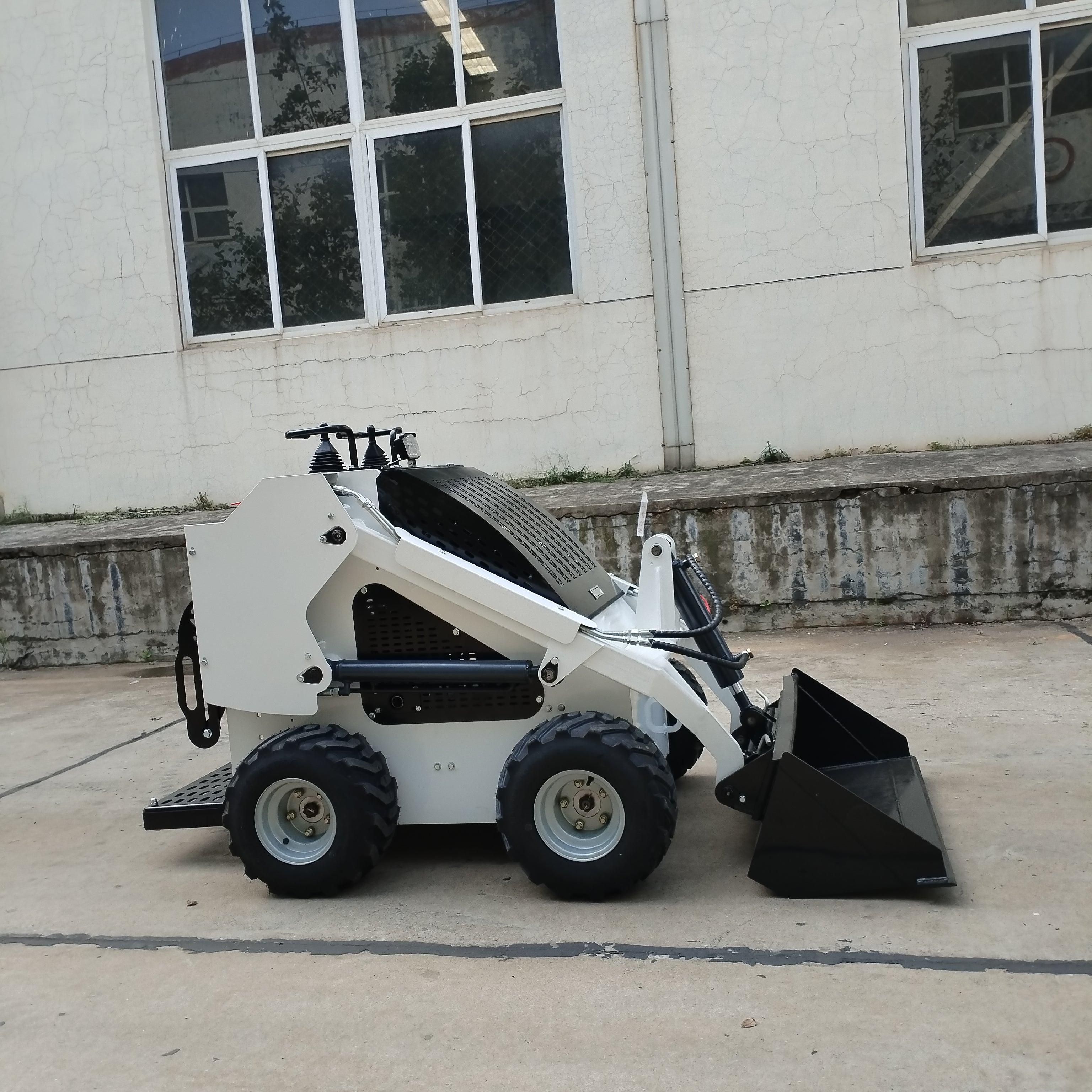

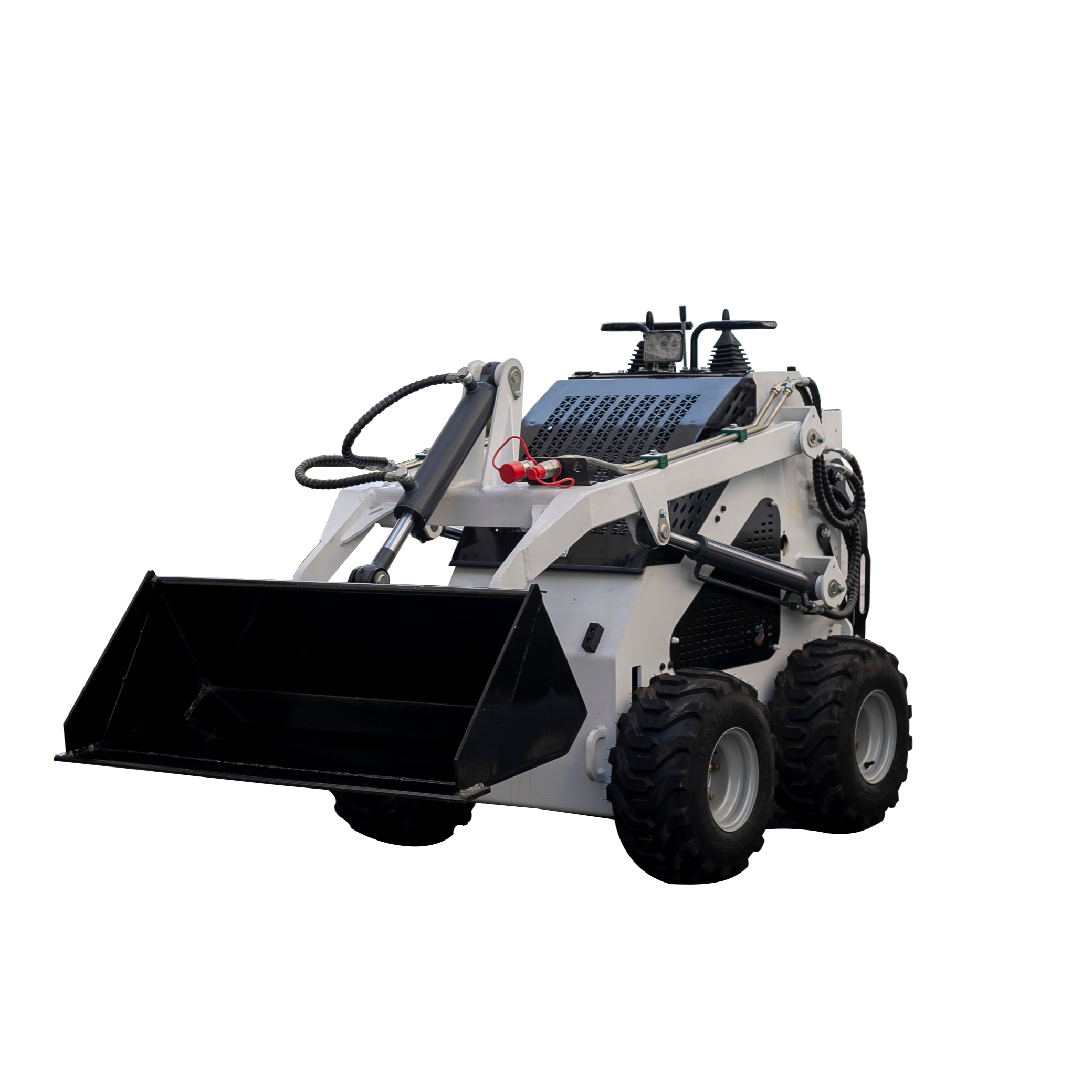

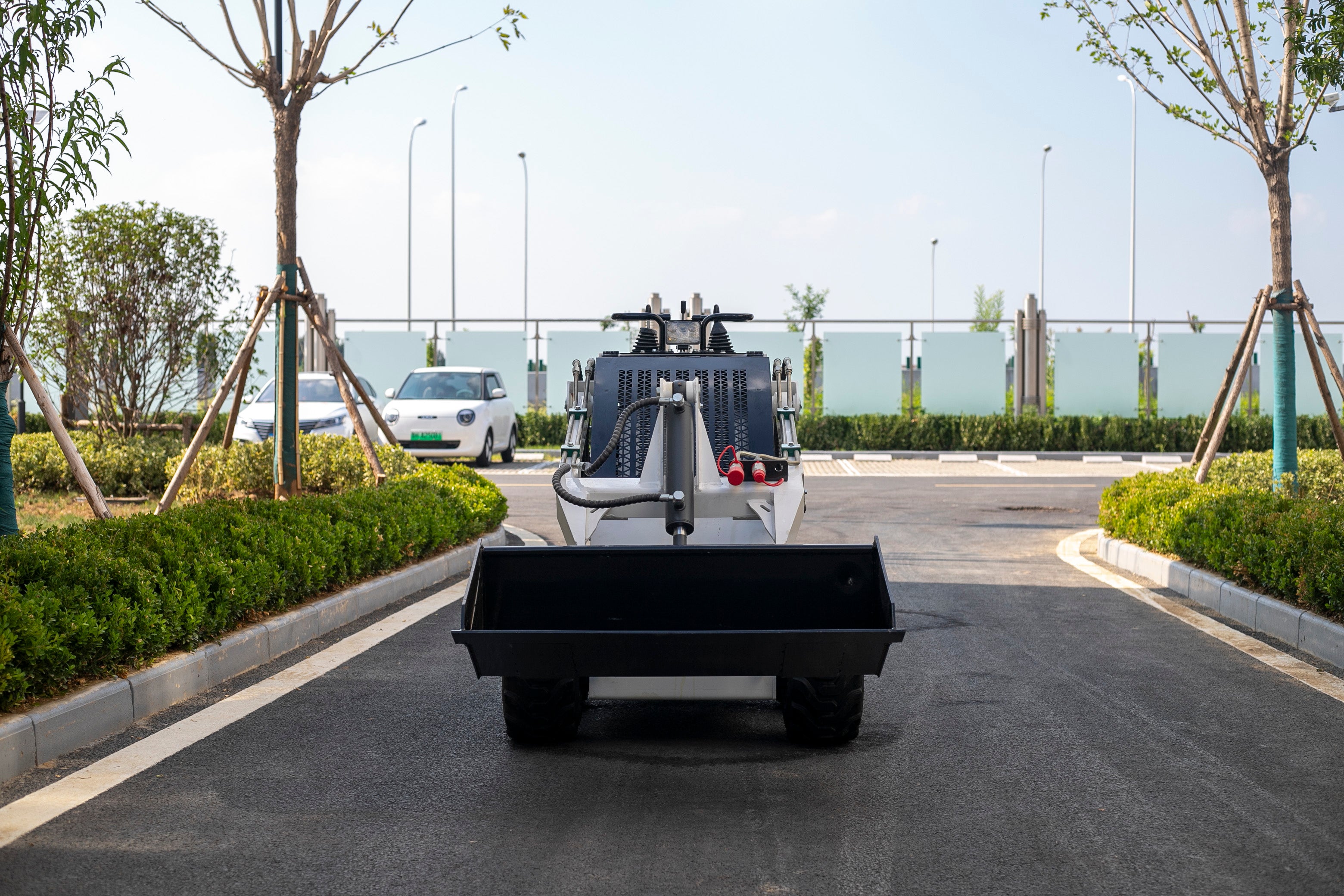

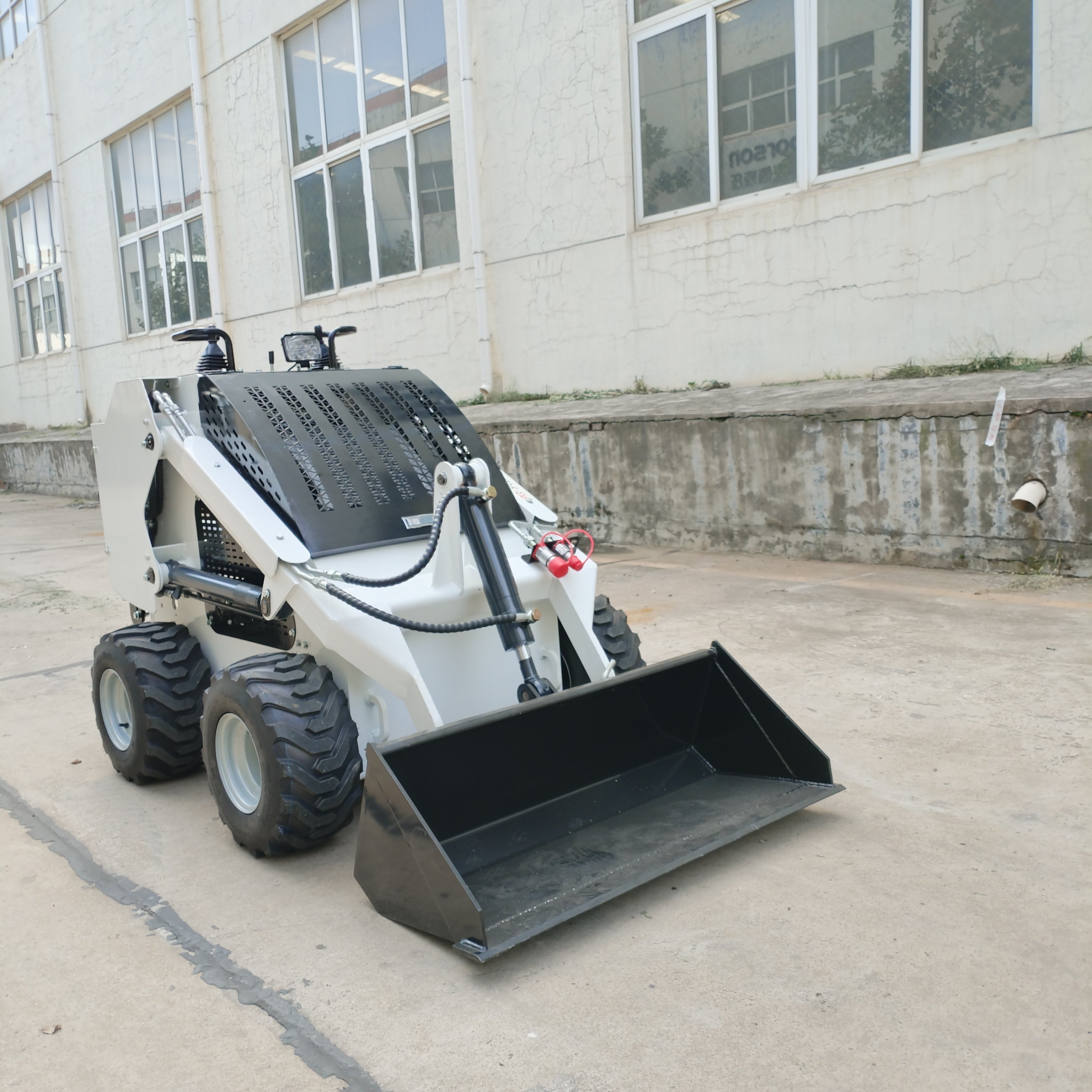

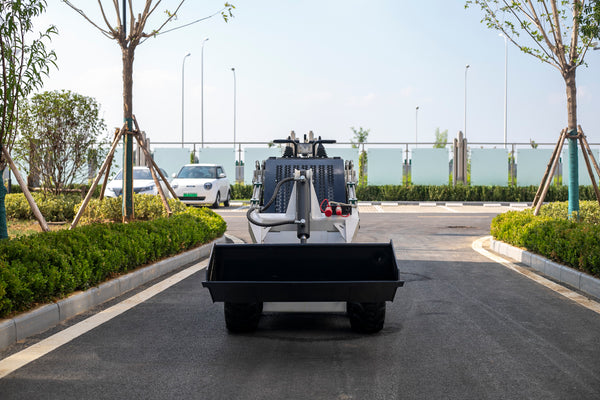

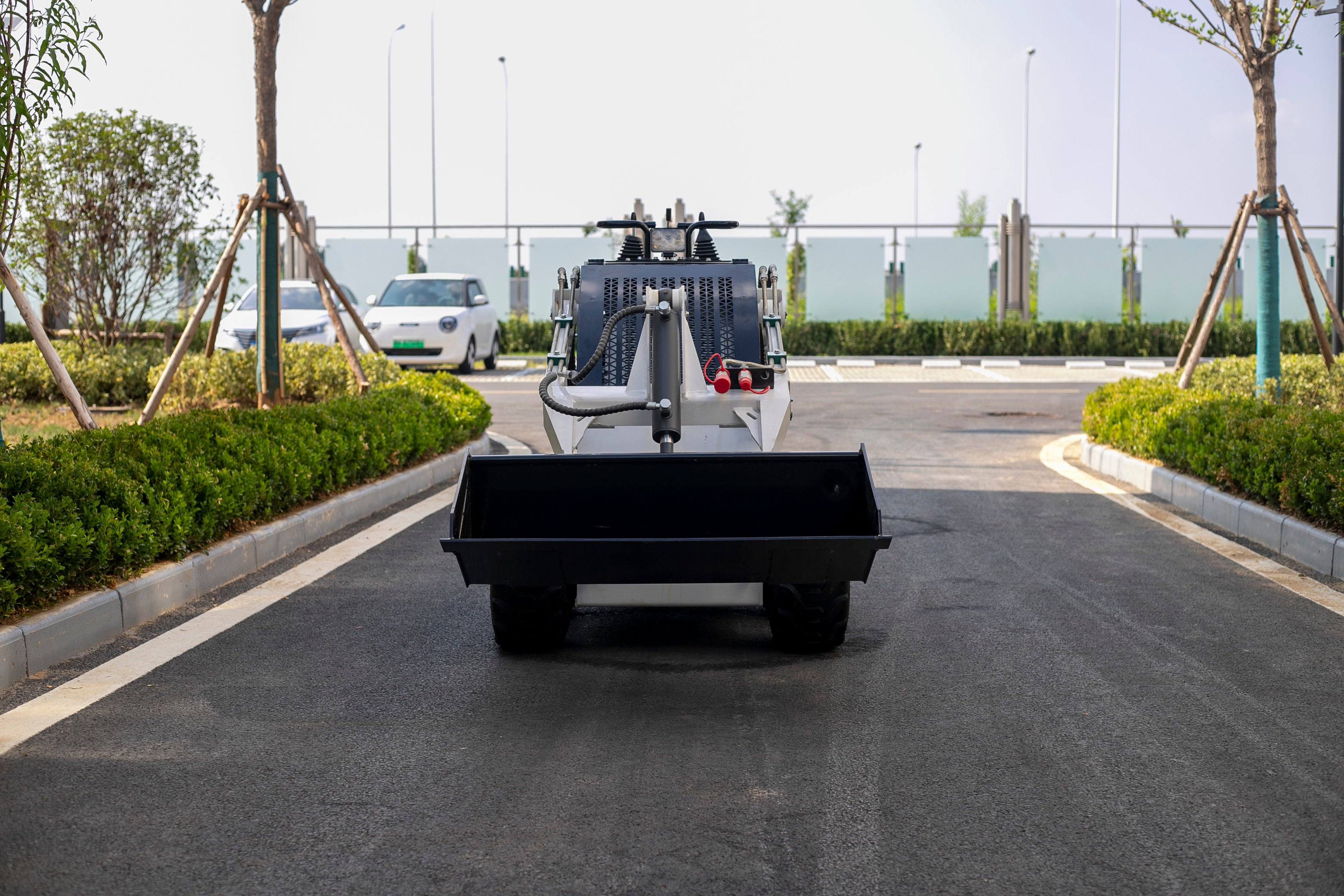

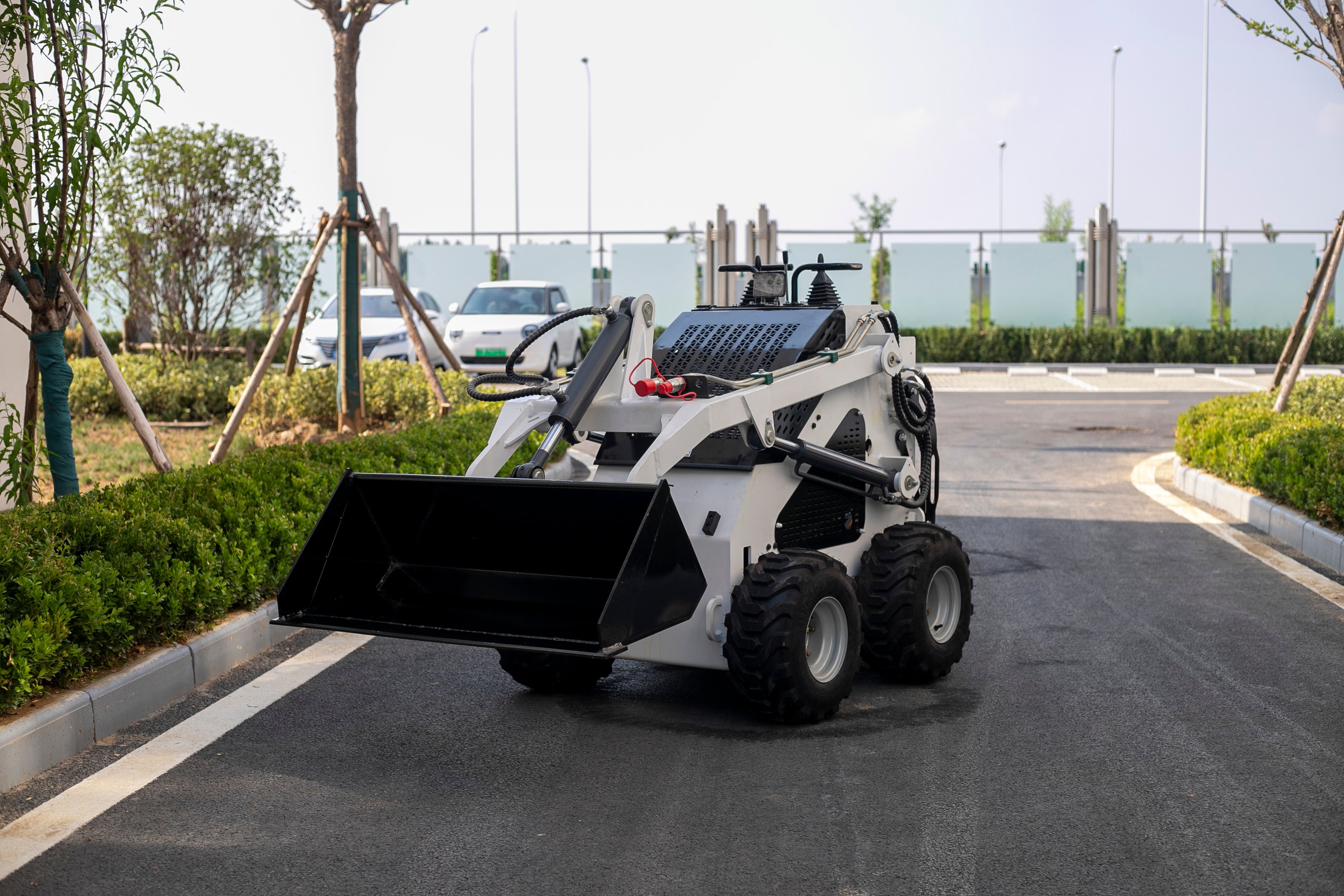

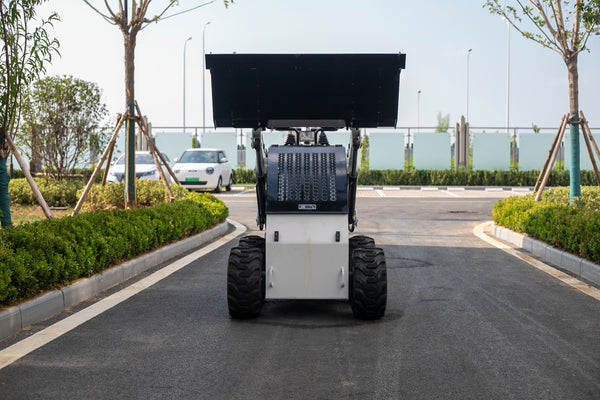

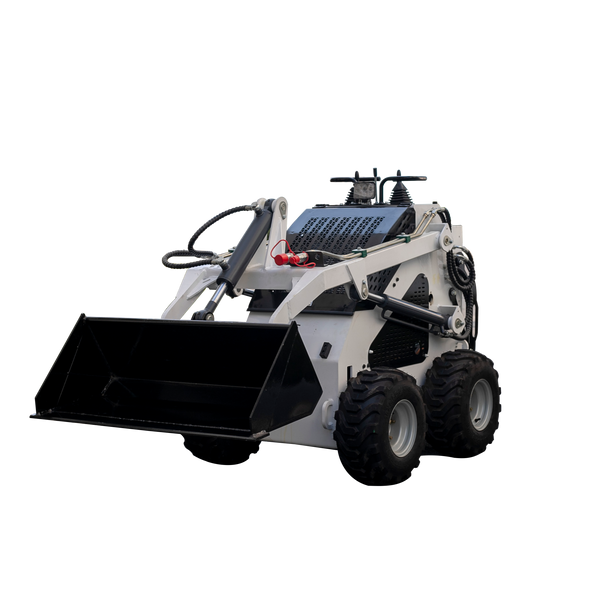

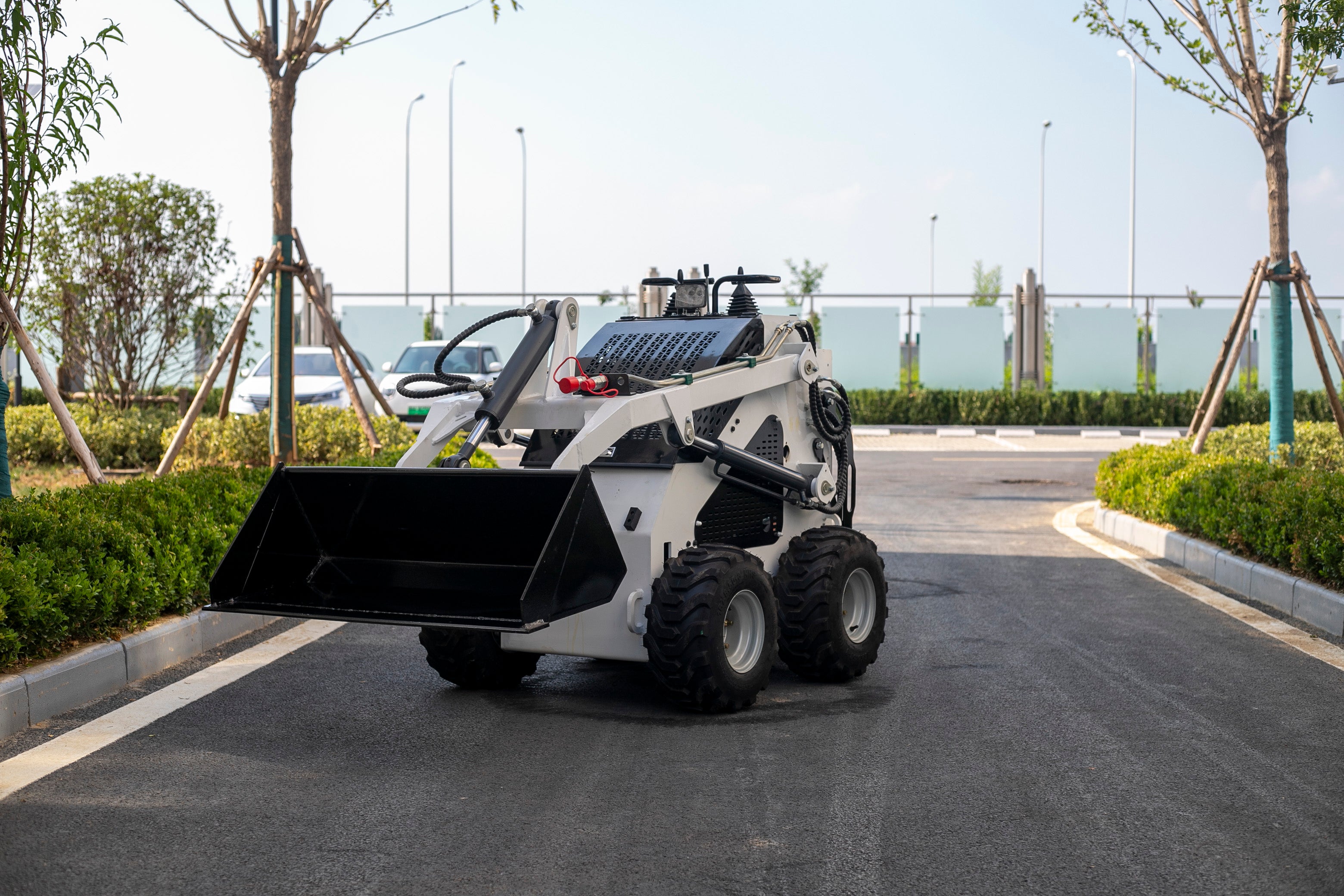

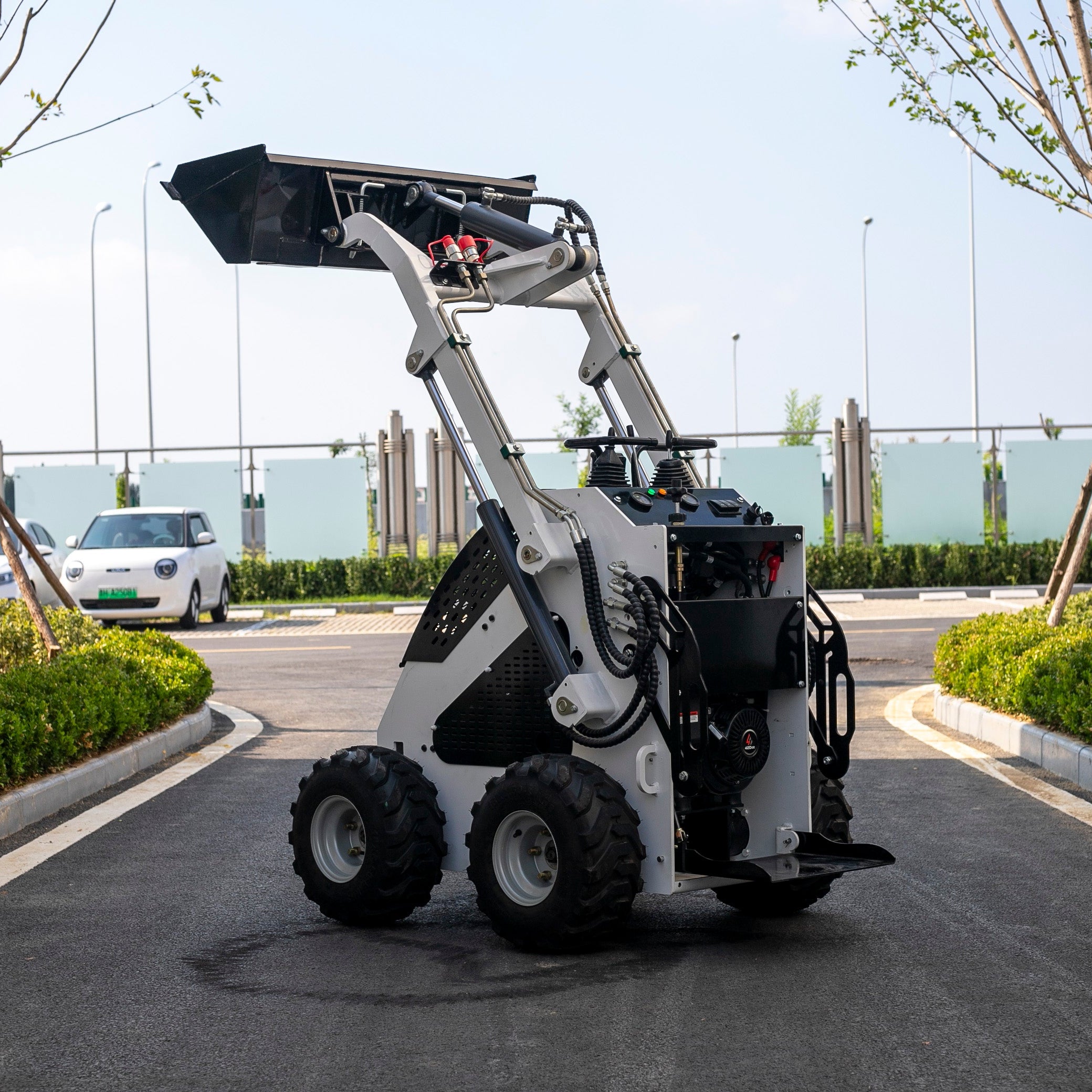

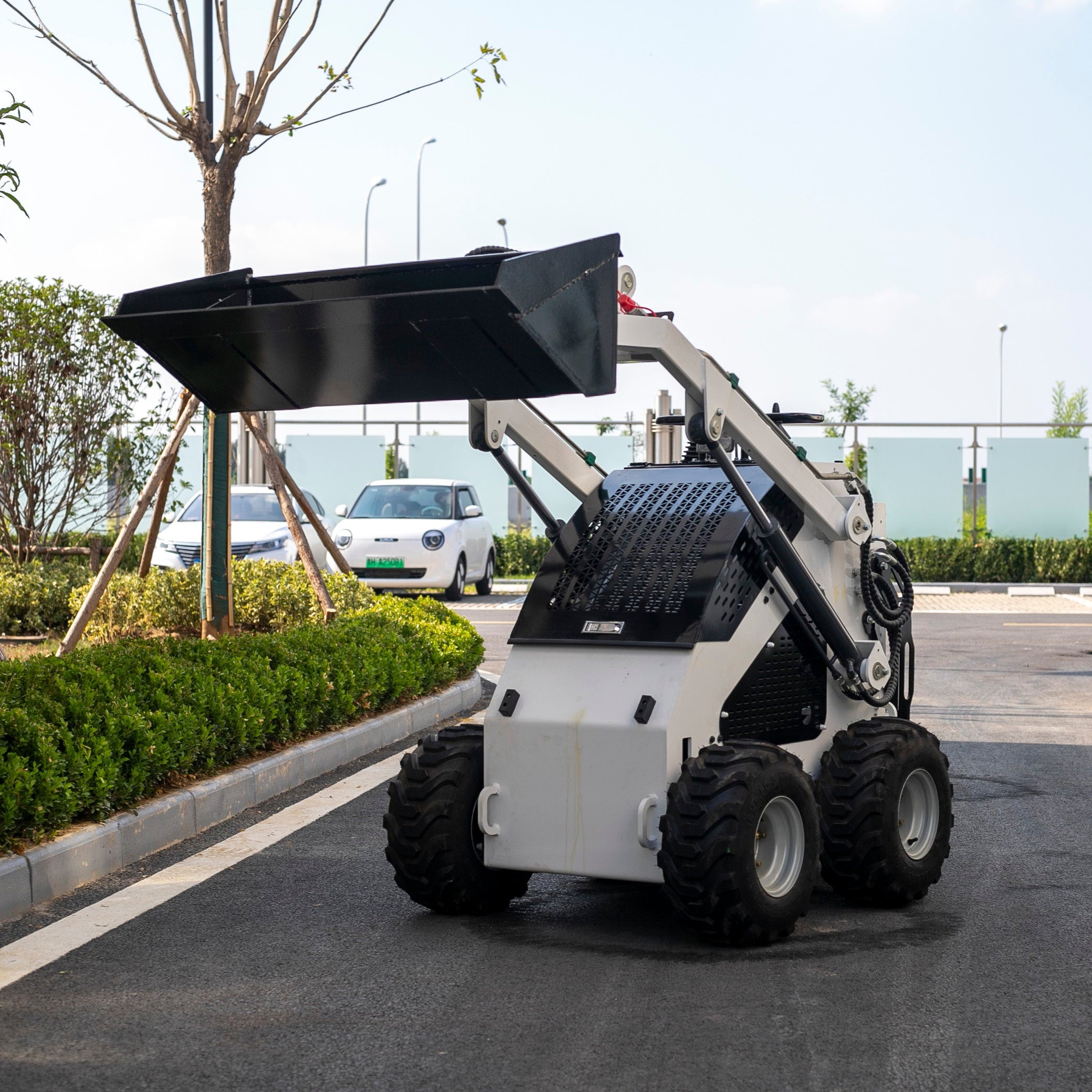

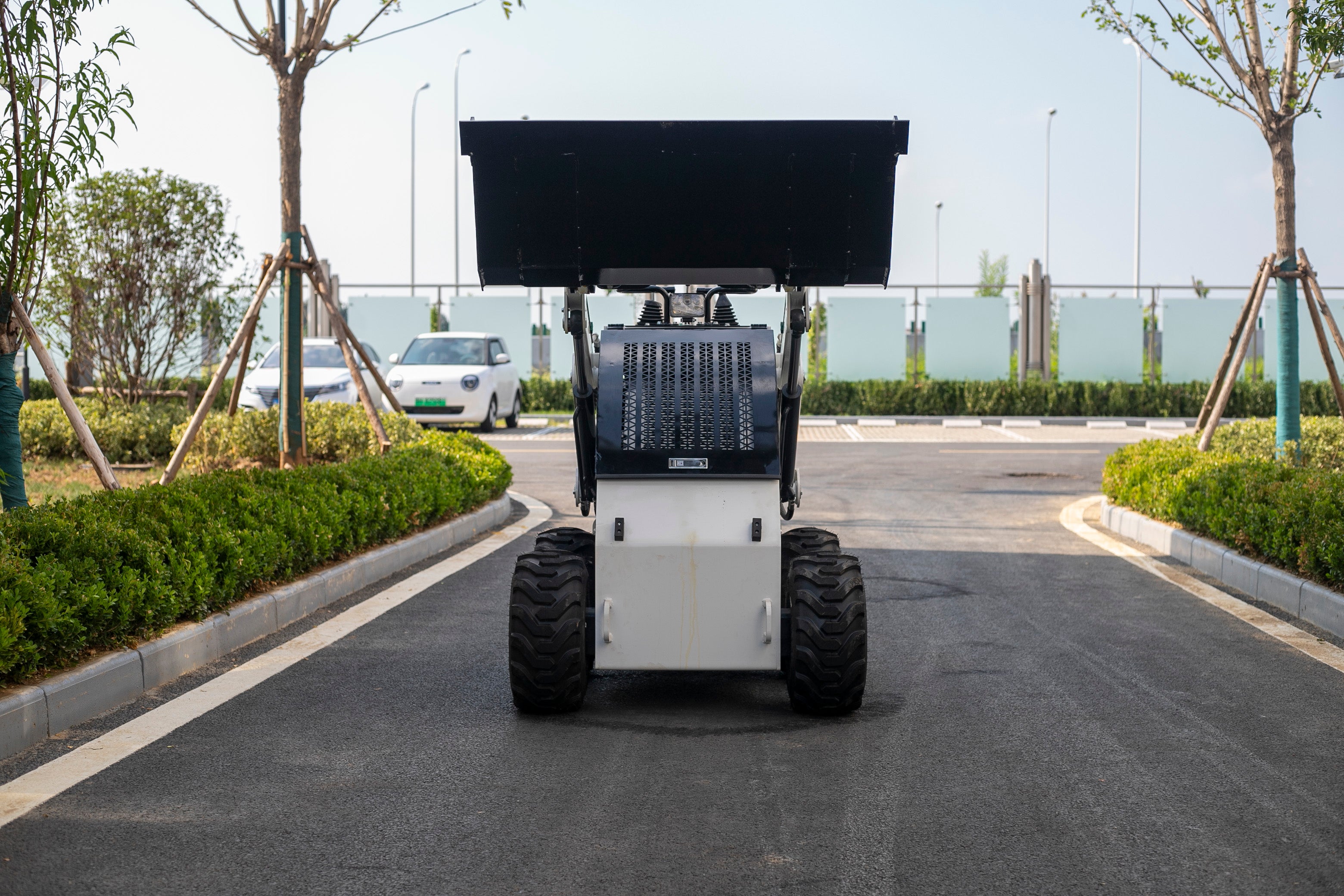

S360 Skid Steer Loader | Compact Multi-Function Mini Loader
PRODUCT DETAILS
Product Description
1. Product Overview

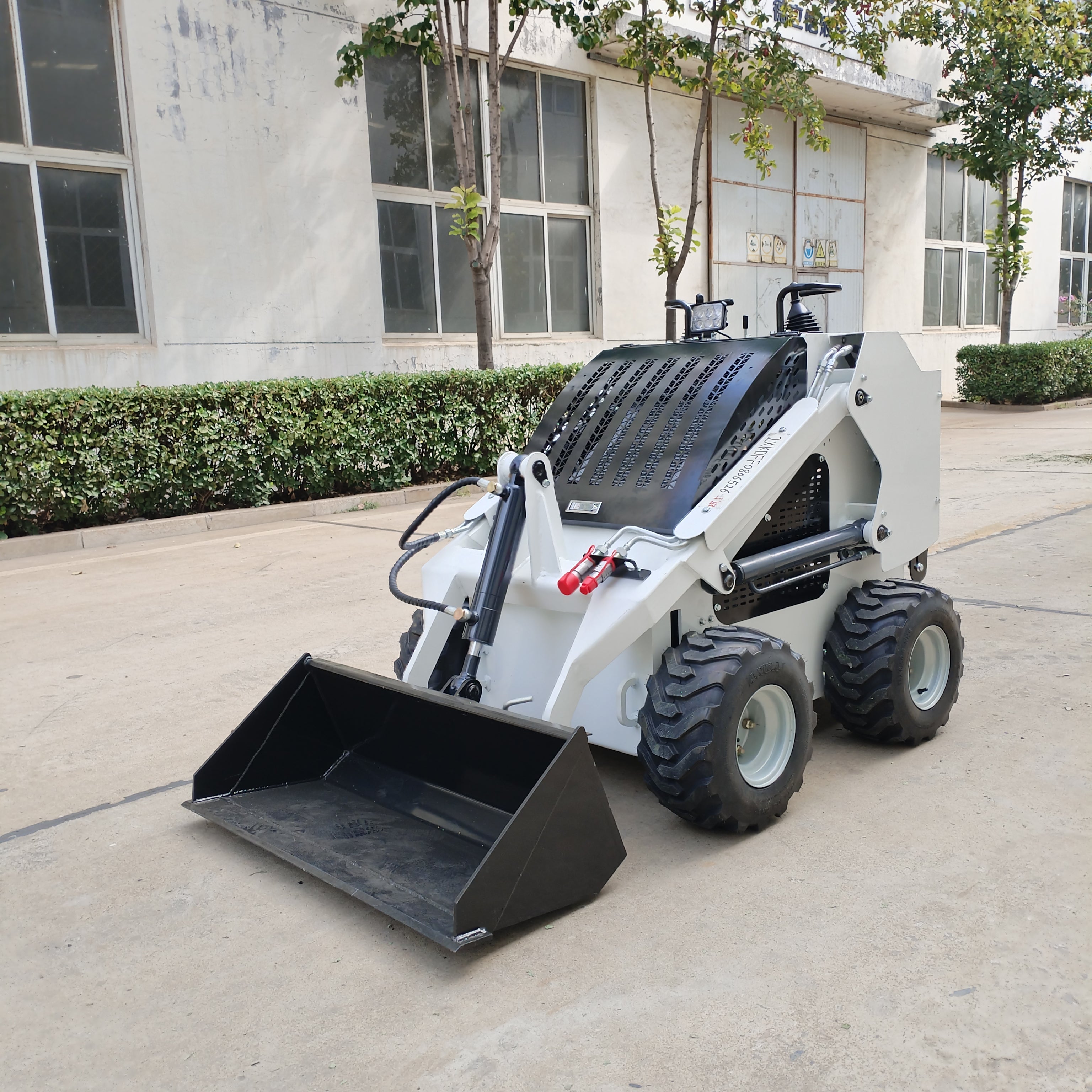

The S360 skid steer loader is a compact and versatile construction machine designed for operations in confined spaces, uneven ground, and frequently changing job requirements. It is widely used in municipal projects, infrastructure construction, industrial loading, landscaping, residential work, barns, livestock farms, and airport runway maintenance. In addition, it can serve as auxiliary equipment for large-scale construction machinery, enhancing overall efficiency.
2. Key Features
-
Compact and flexible – ideal for tight spaces and complex terrains.
-
Easy operation – mechanical controls, user-friendly, and easy to transport.
-
Durable build – reinforced steel frame with anti-rust powder coating.
-
Multiple power options – available with diesel, gasoline, or electric engines.
-
360° rotation – highly maneuverable for diverse job sites.
-
High-performance system – equipped with high-flow dual pump for efficient work.
3. Configurations
Standard Configuration:
-
KOOP 192 diesel engine 7.6KW (or equivalent)
-
Mechanical operation with single circuit output
-
Heavy-duty vacuum tires 18*8.5-8
-
High-flow dual pump
-
Boom cylinder with internal oil pipe
-
Standard bucket
Optional Configuration:
-
Alternative engines: Electric / Gasoline / B&S
-
Bucket options: larger bucket, log grapple, pallet fork, etc.
-
Protective canopy or closed cab
-
Hydraulic quick coupler
-

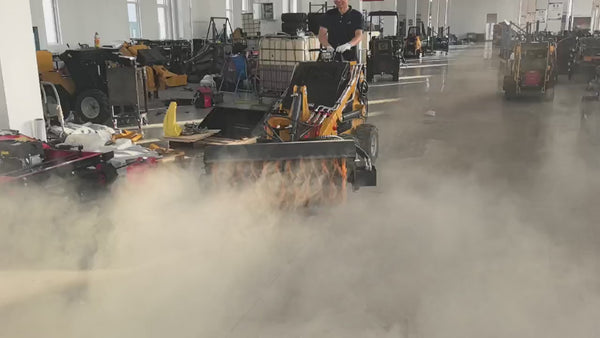

Specialized attachments: sweeper, breaker, auger, etc.

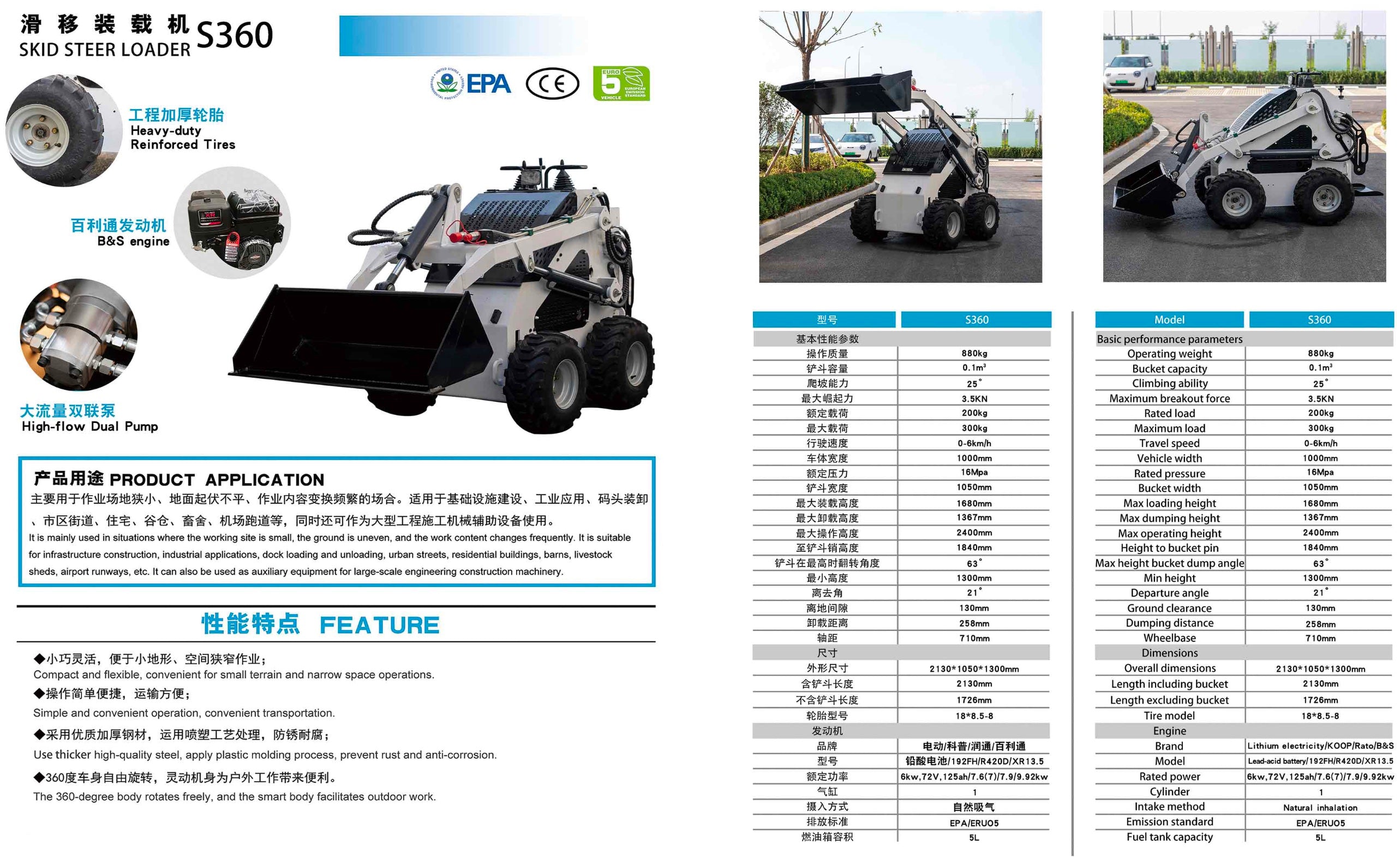

4. Specifications
| Parameter | Value |
|---|---|
| Model | S360 |
| Operating Weight | 880 kg |
| Bucket Capacity | 0.1 m³ |
| Climbing Ability | 25° |
| Max Breakout Force | 3.5 KN |
| Rated Load | 200 kg |
| Maximum Load | 300 kg |
| Travel Speed | 0–6 km/h |
| Vehicle Width | 1000–1050 mm |
| Bucket Width | 1050 mm |
| Max Loading Height | 1680 mm |
| Max Dumping Height | 1367 mm |
| Max Operating Height | 2400 mm |
| Height to Bucket Pin | 1840 mm |
| Max Bucket Dump Angle | 63° |
| Min Ground Clearance | 130 mm |
| Dumping Distance | 258 mm |
| Wheelbase | 710 mm |
| Dimensions | 2130×1050×1300 mm |
| Tire Model | 18×8.5-8 |
| Engine Brand | KOOP / Rato / B&S / Electric |
| Engine Model | 192FH / R420D / XR13.5 |
| Rated Power | 6–9.92 KW (7.6–13 HP) |
| Emission Standard | EPA / EURO V |
